MIZUNO WAVE PRODIGY REVERSE TECH PACK

My team and I deconstructed a pair of Mizuno Wave Prodigy running shoes and built a reverse tech pack based on our findings. Click through the slide deck below to check out the reverse tech pack!

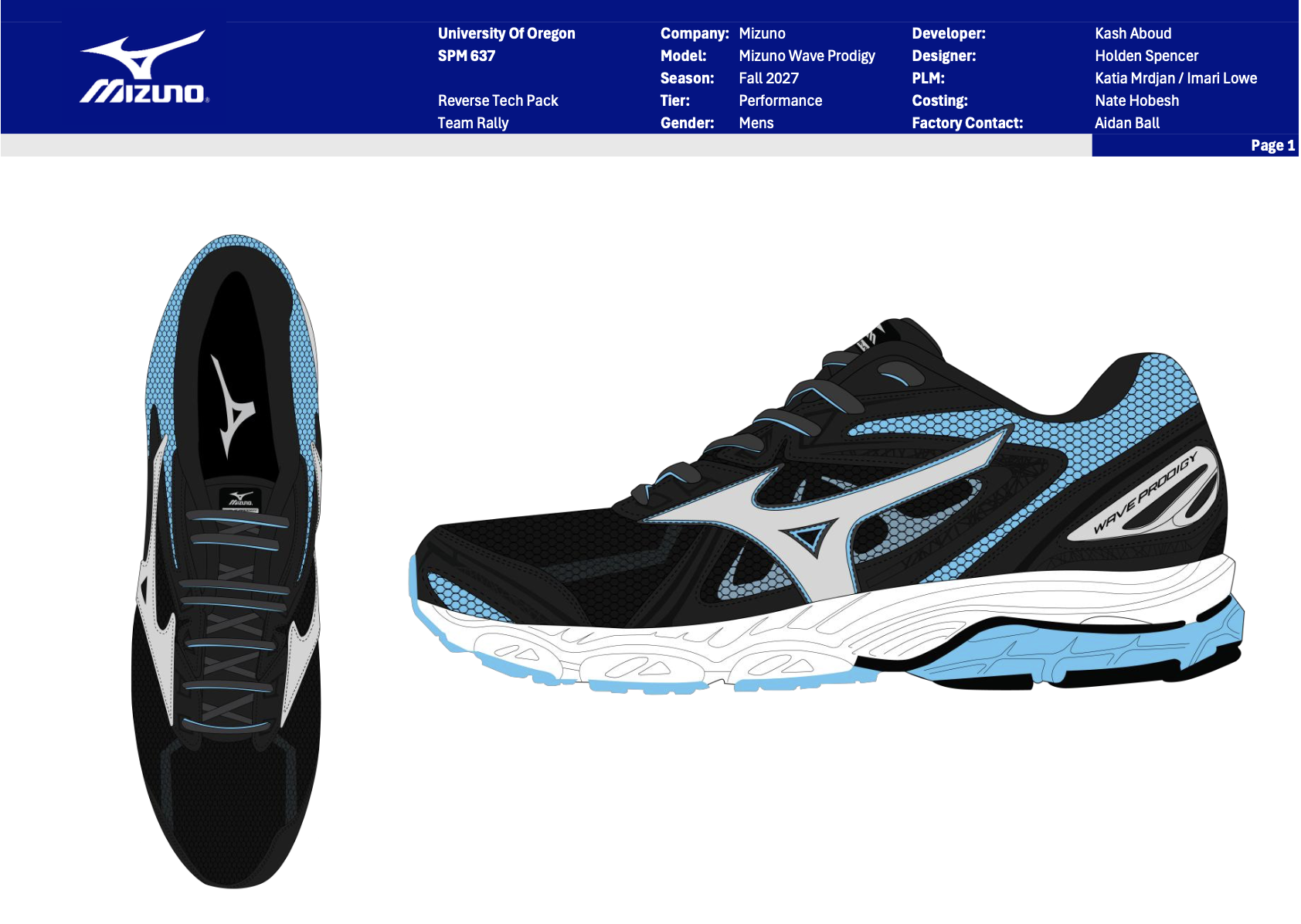

1. Title.png

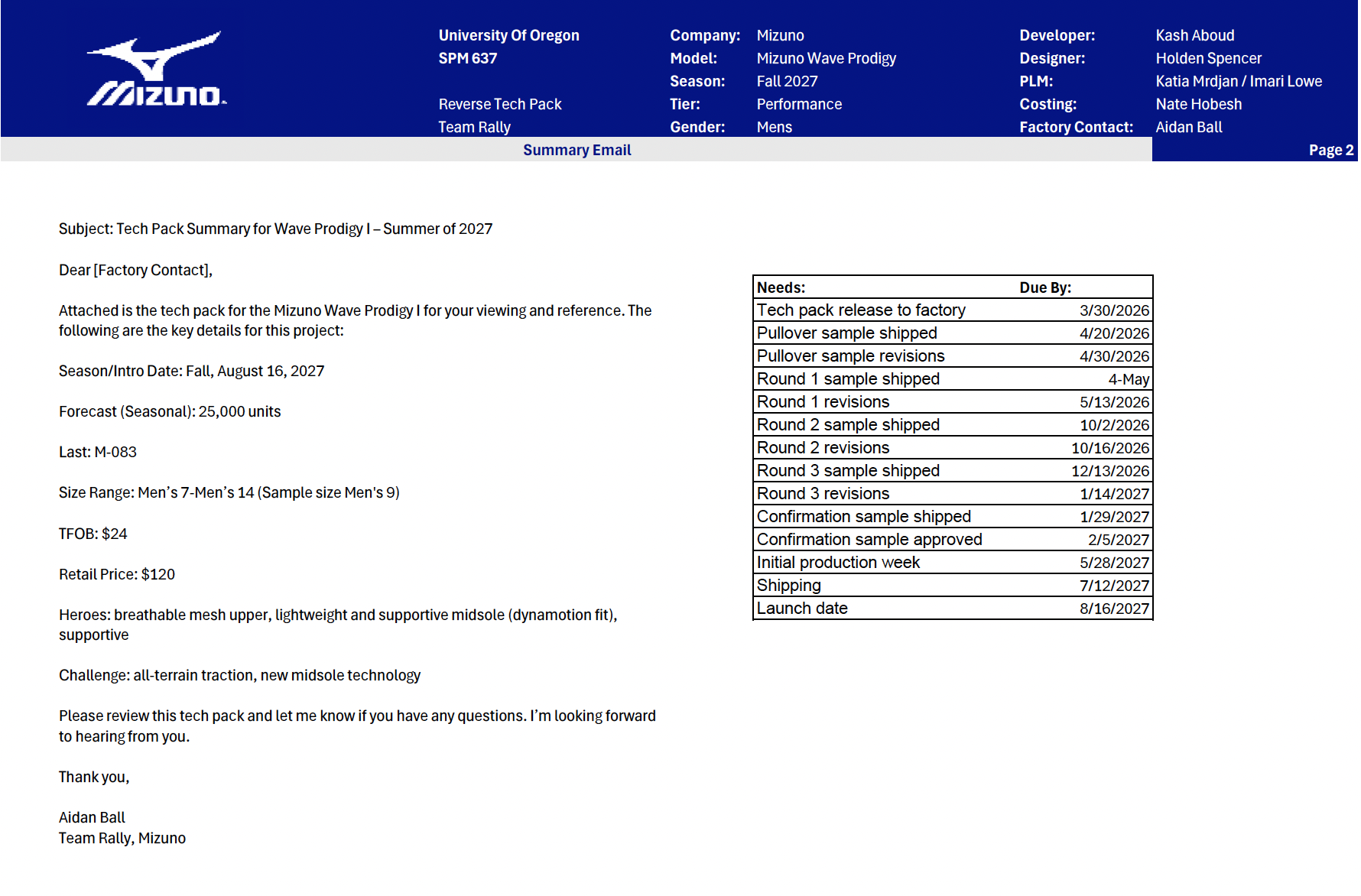

2. Summary Email.png

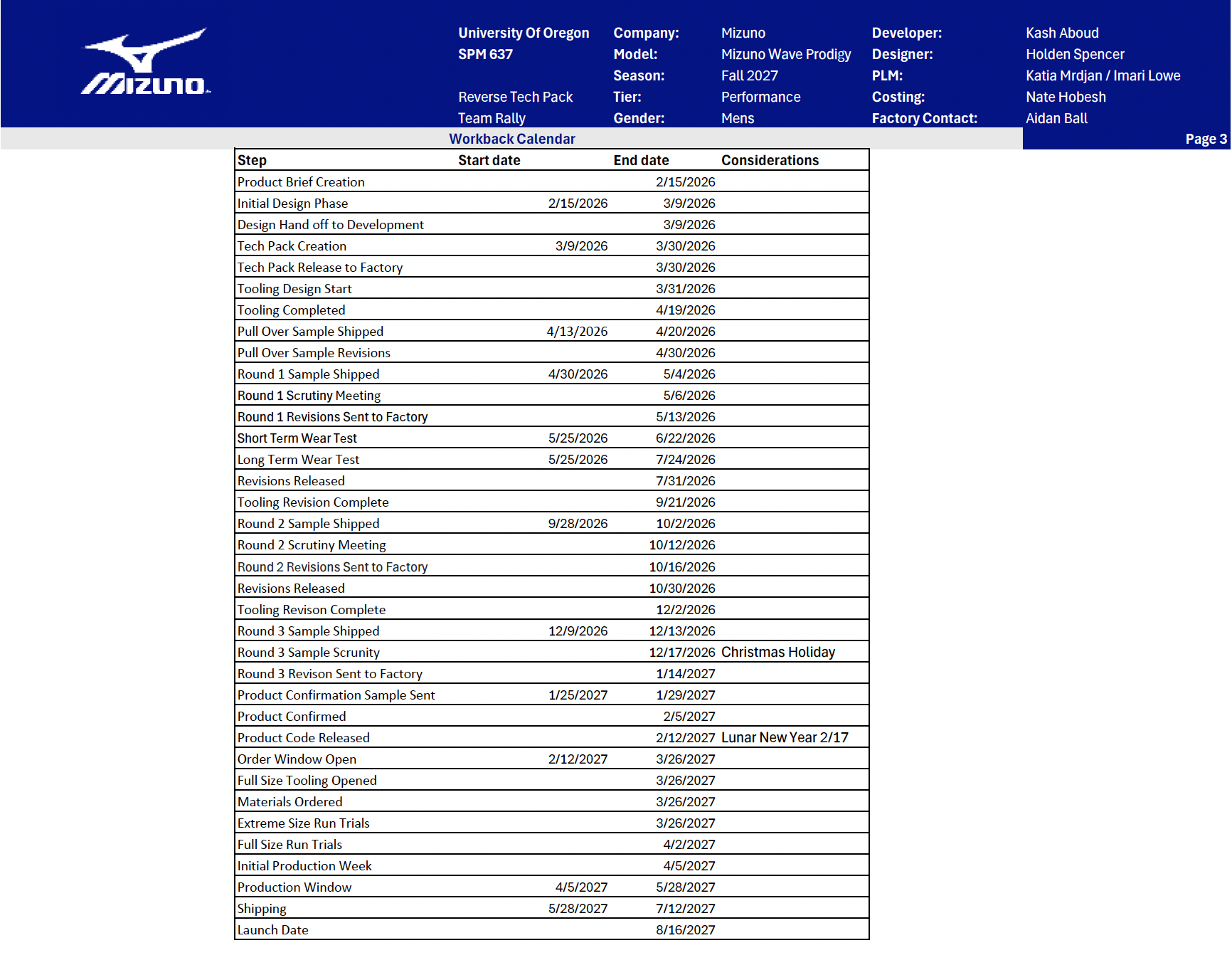

3. Workback Calendar.png

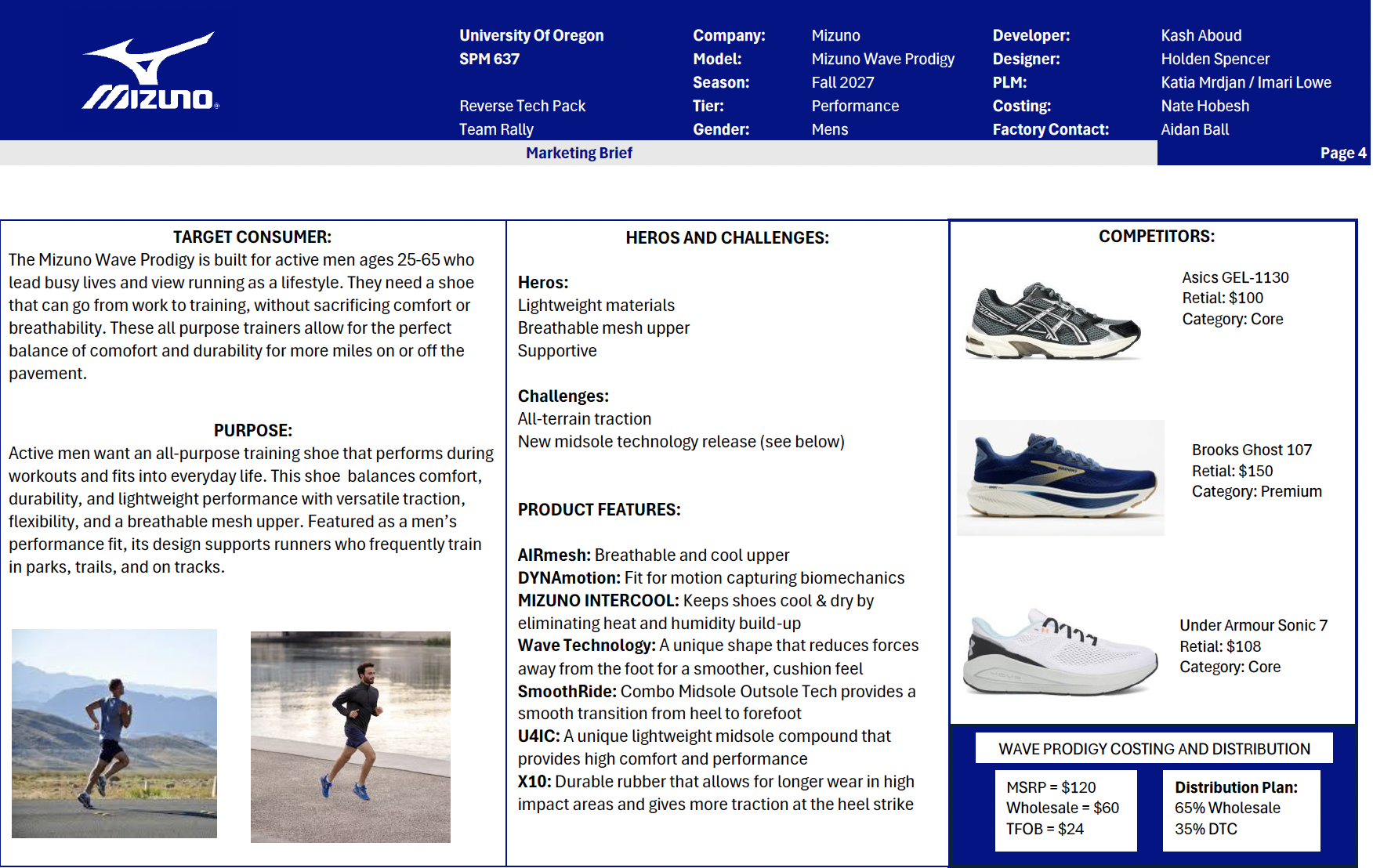

4. Marketing Brief.png

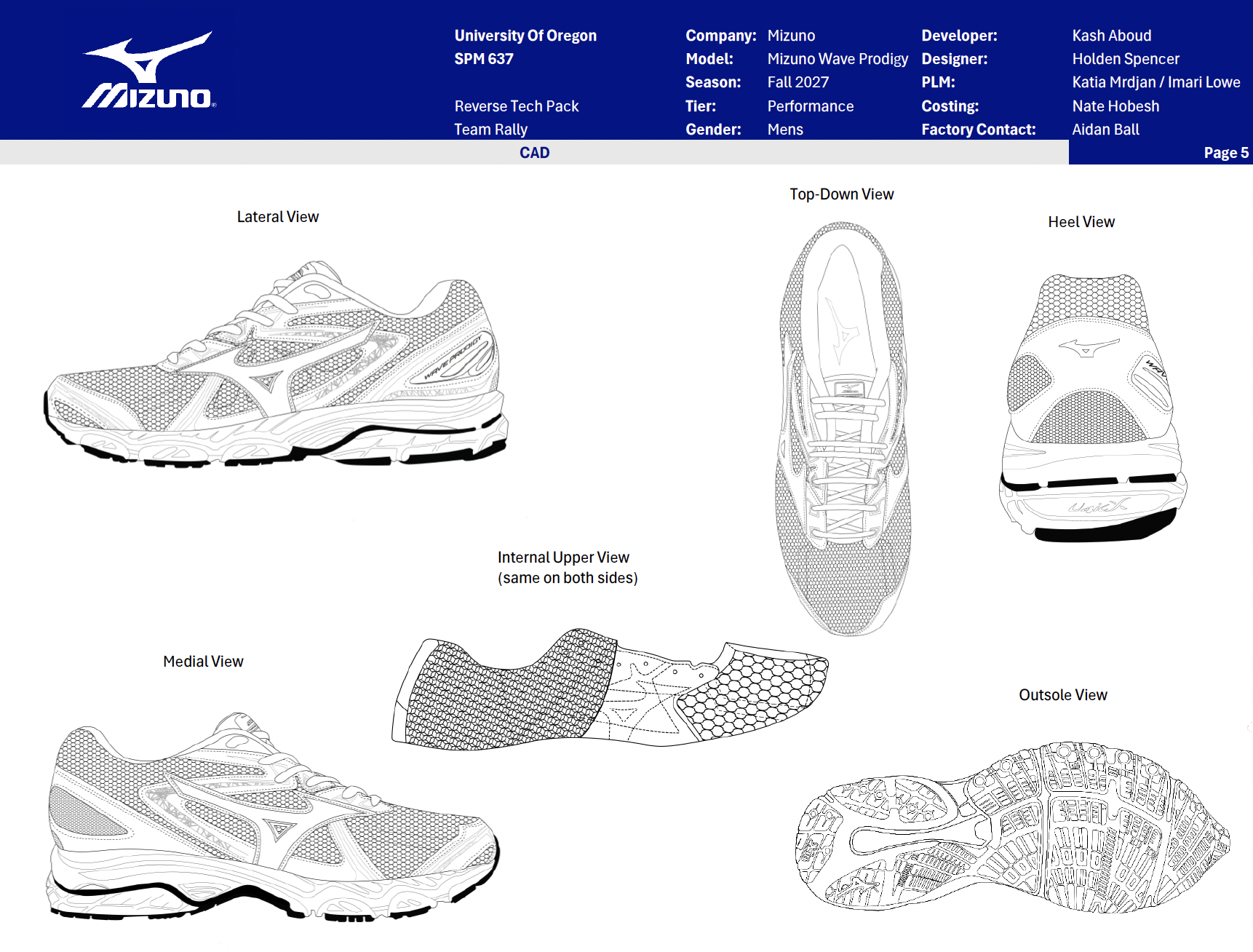

5. CADs.png

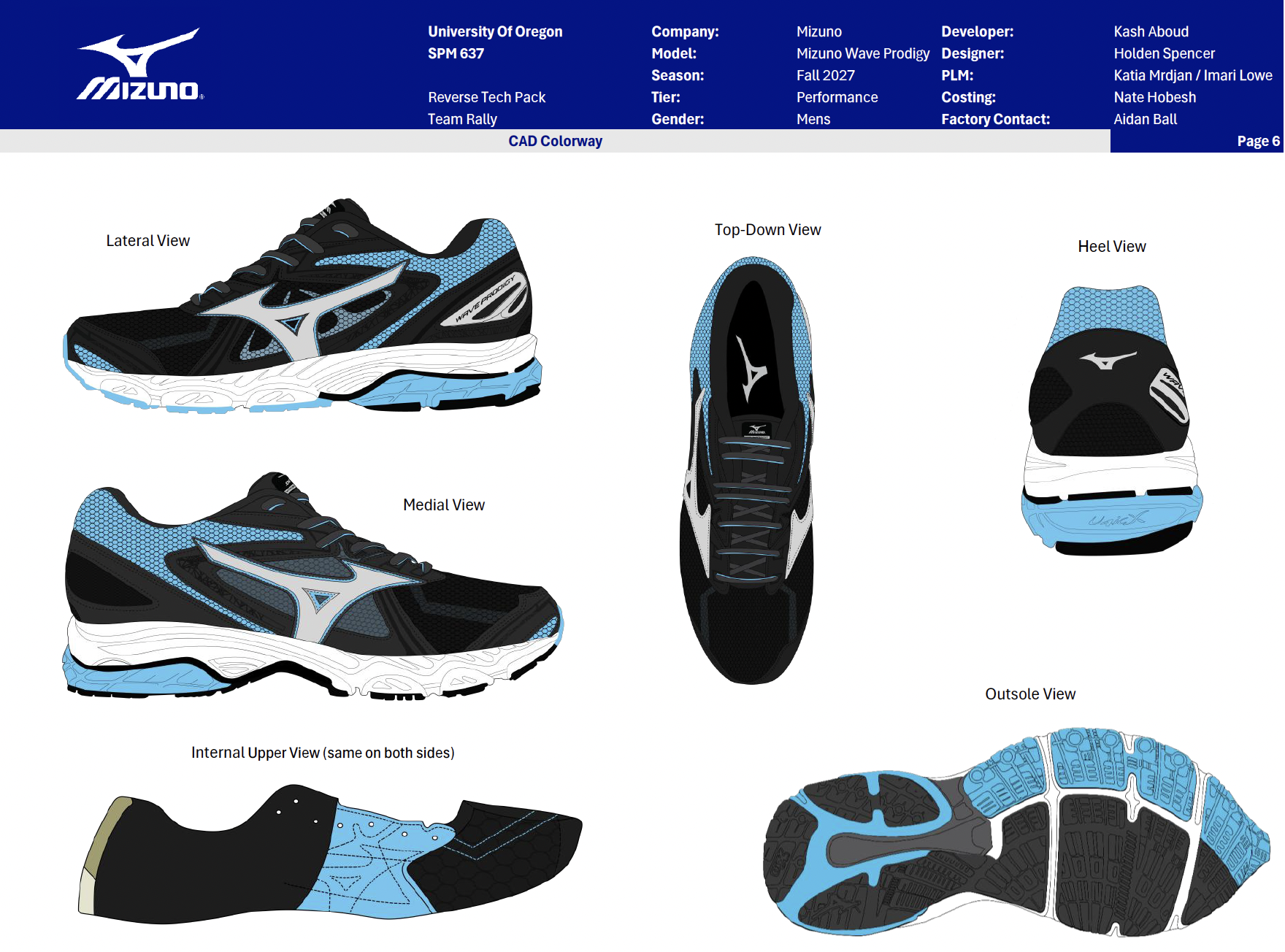

6. CAD Colorway.png

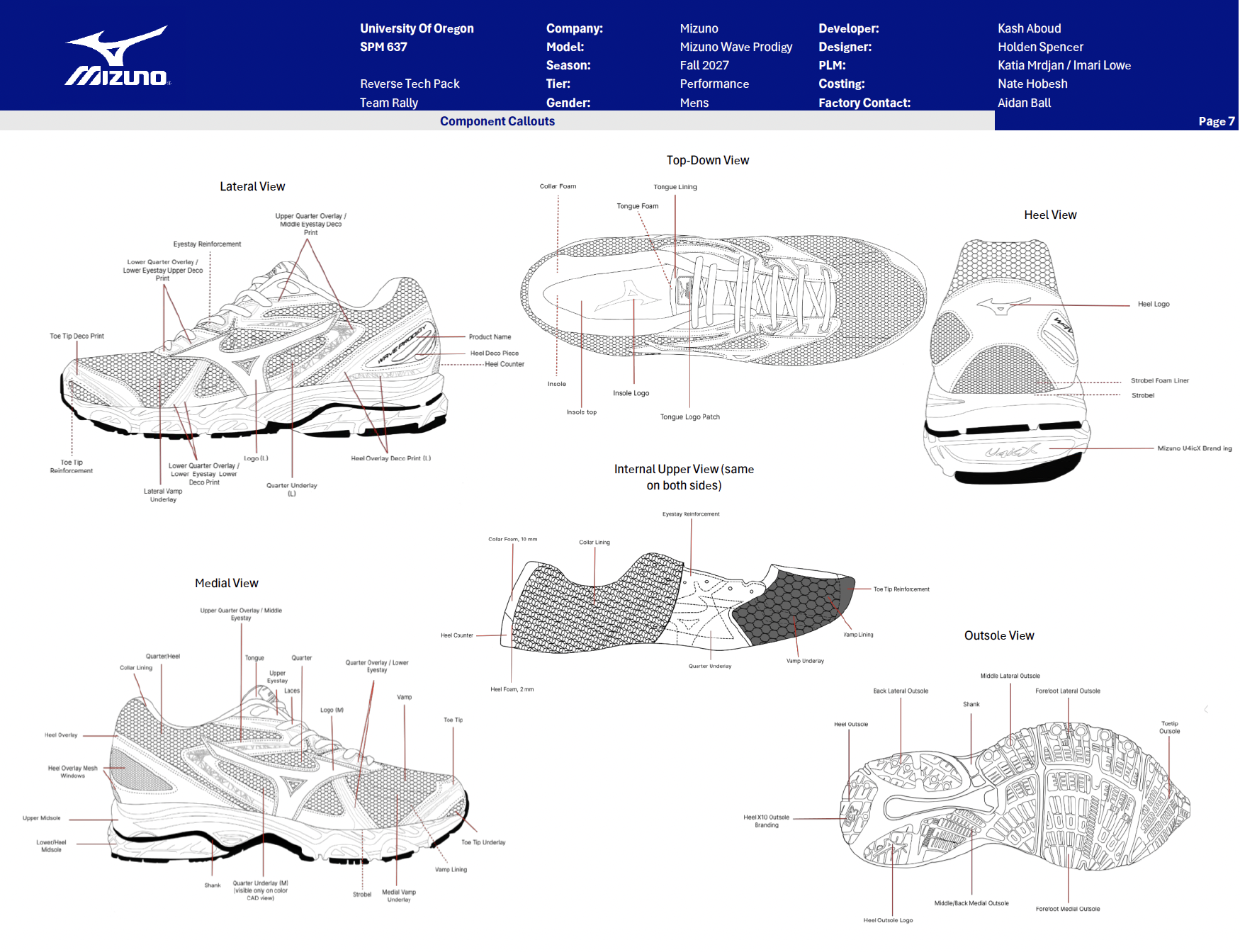

7. Component Callouts.png

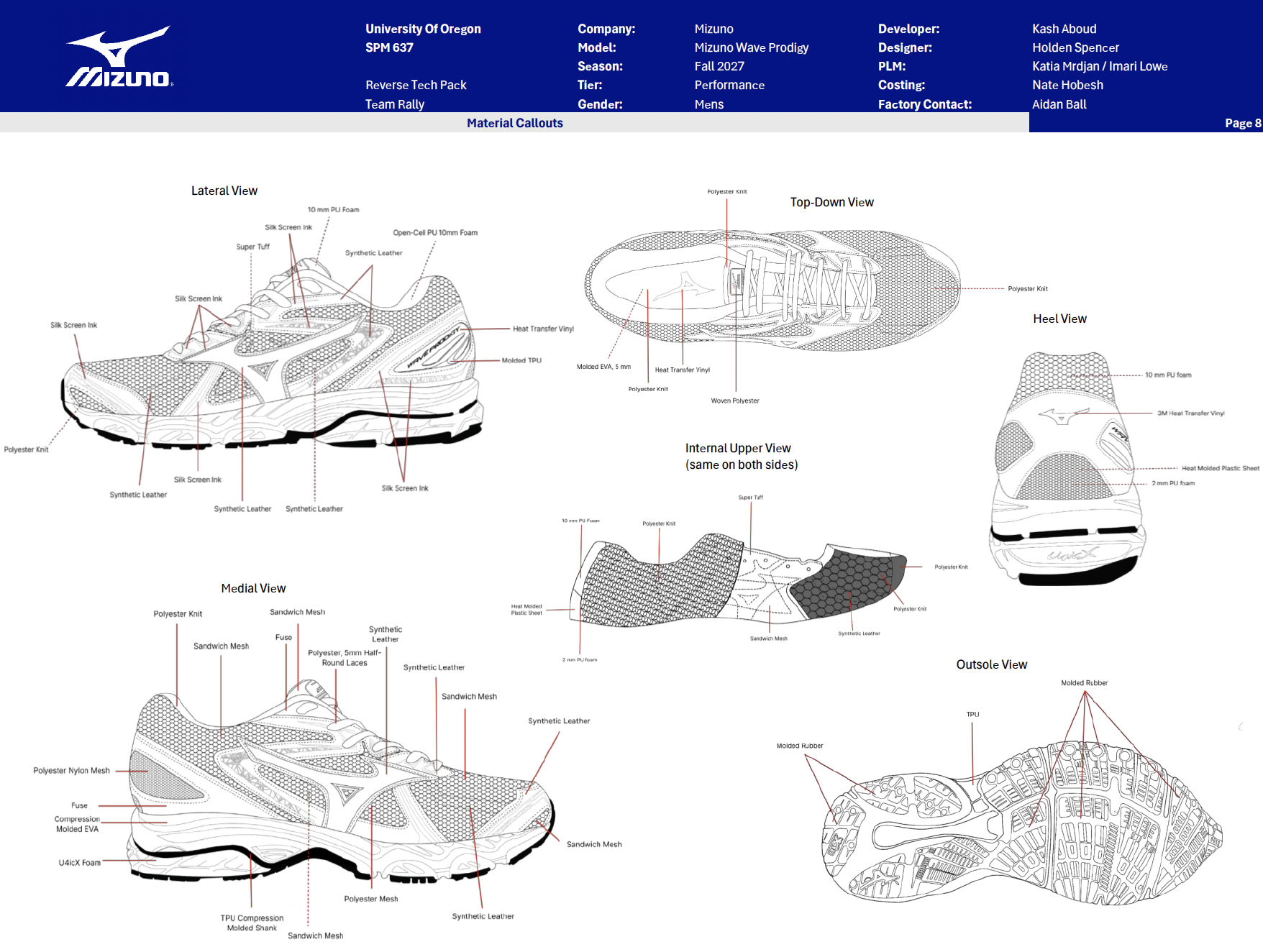

8. Material Callouts.png

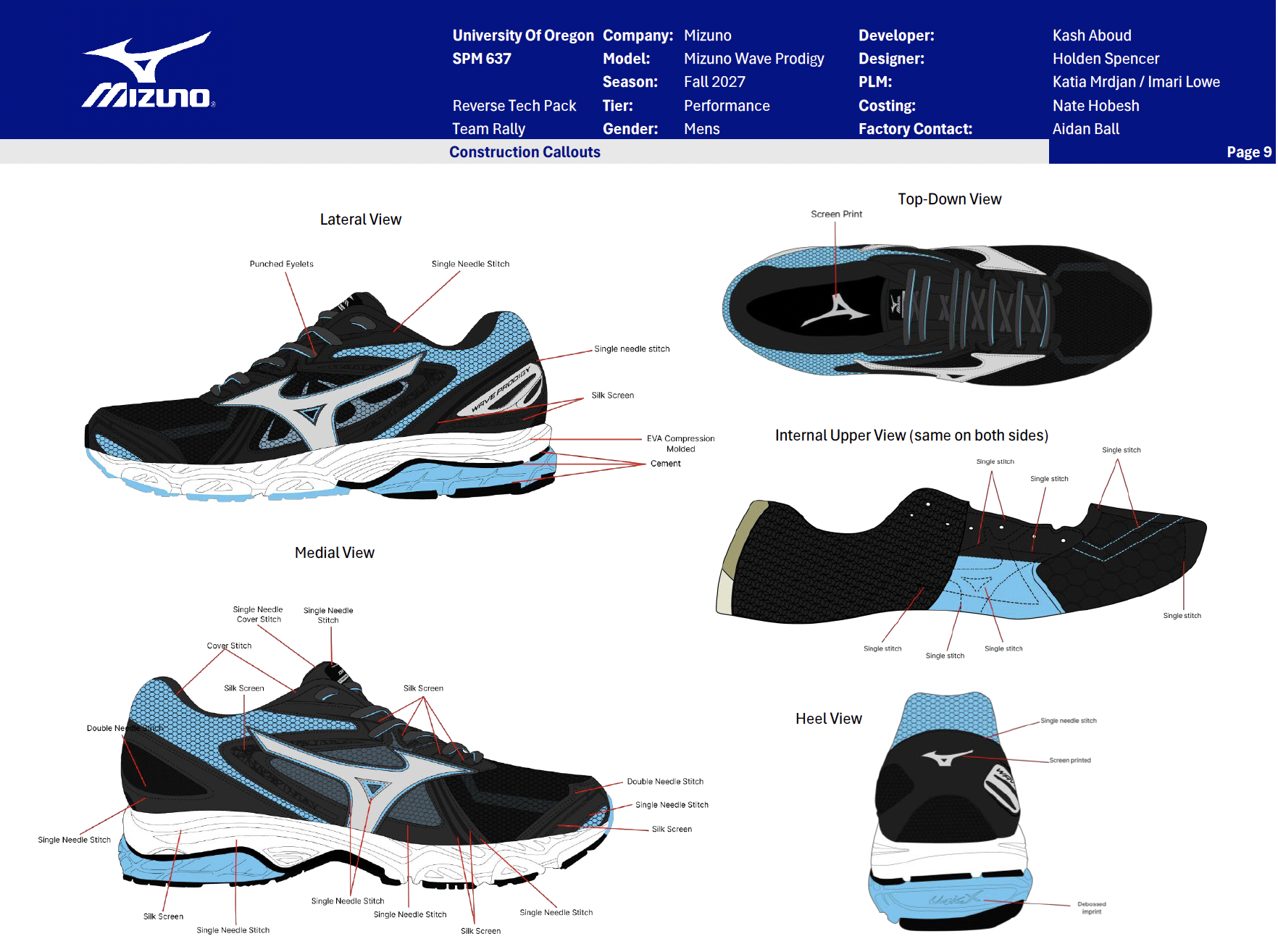

9. Construction Callouts.png

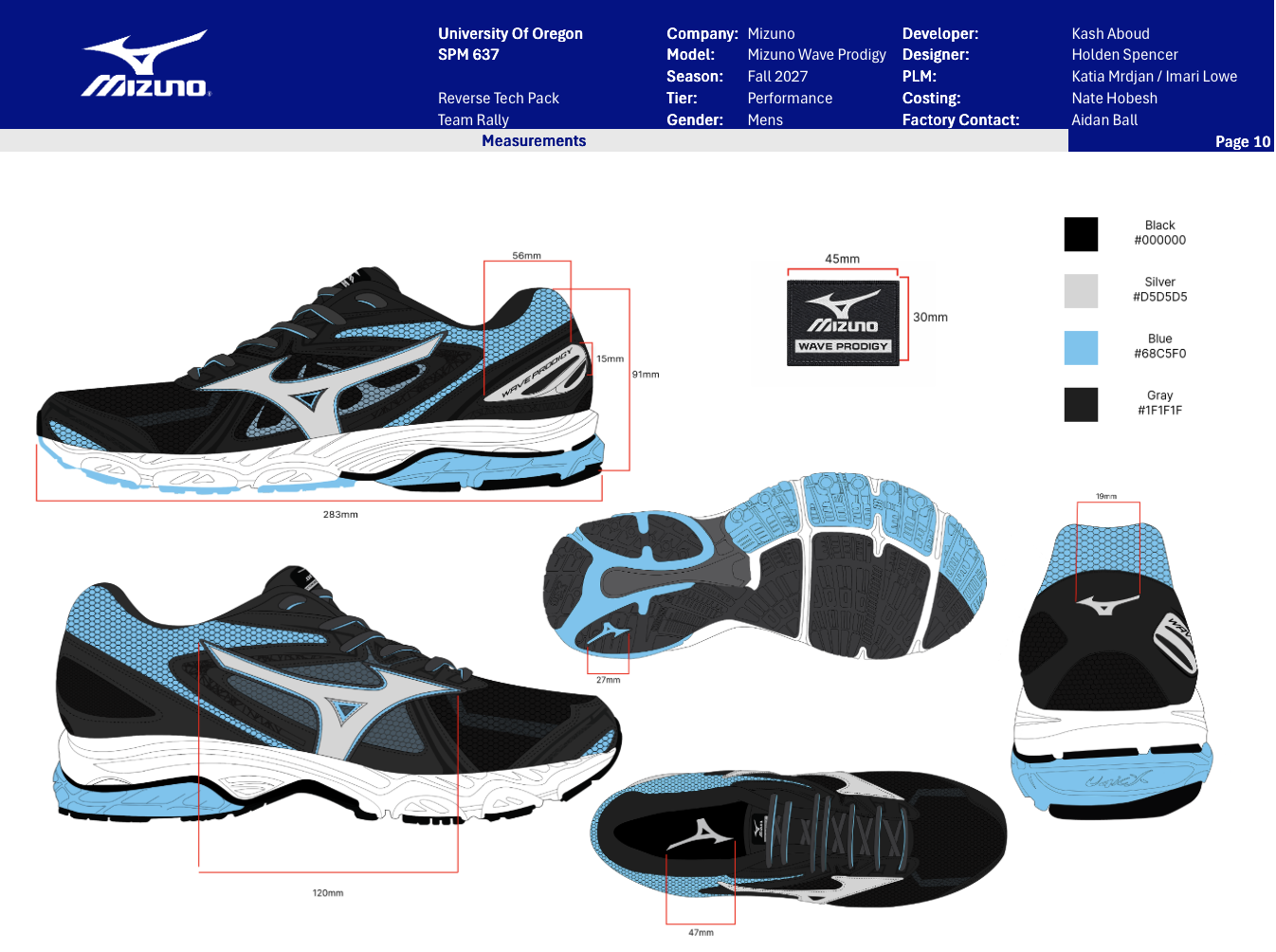

10. Measurements.png

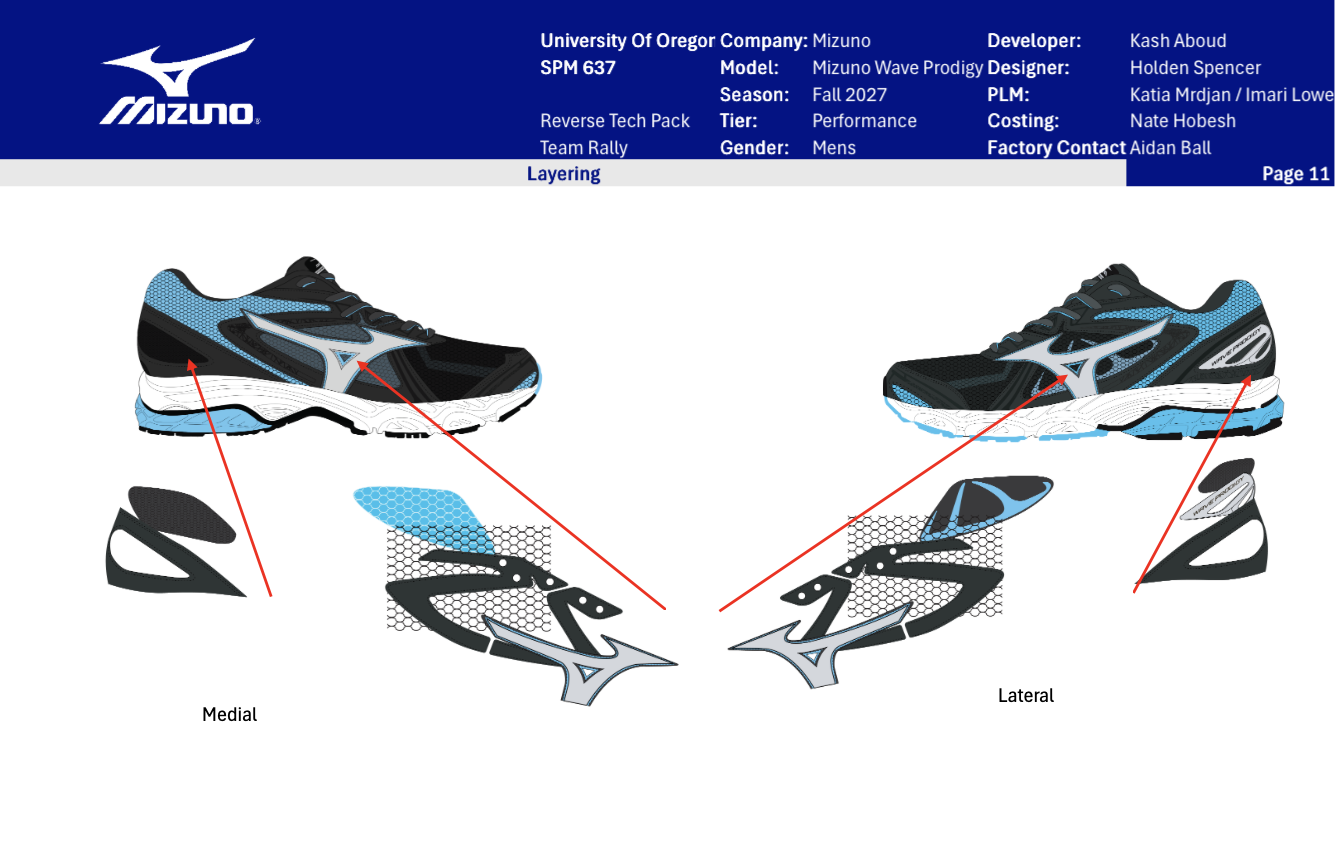

11. Layering.png

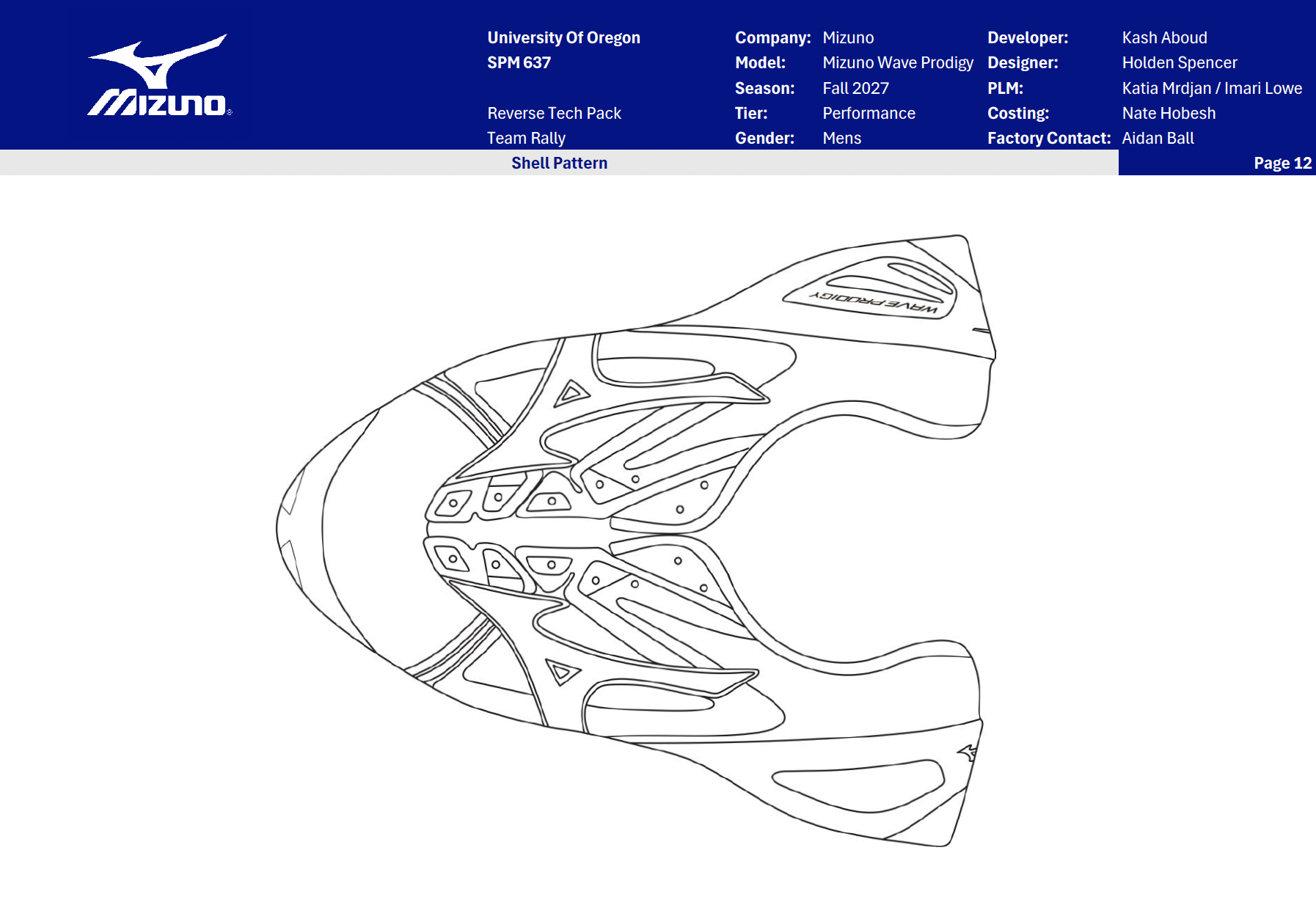

12. Shell Pattern.png

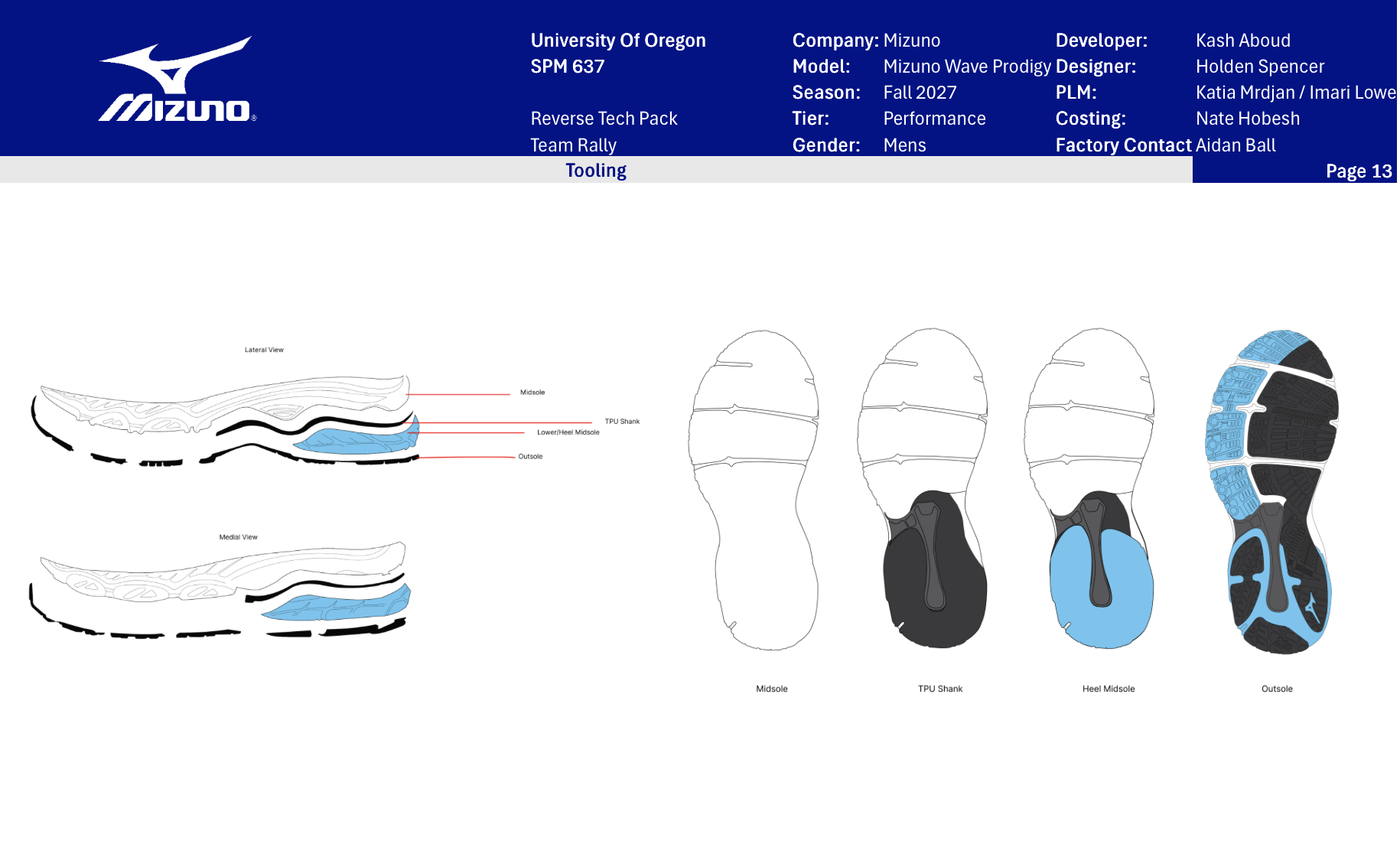

13. Tooling.png

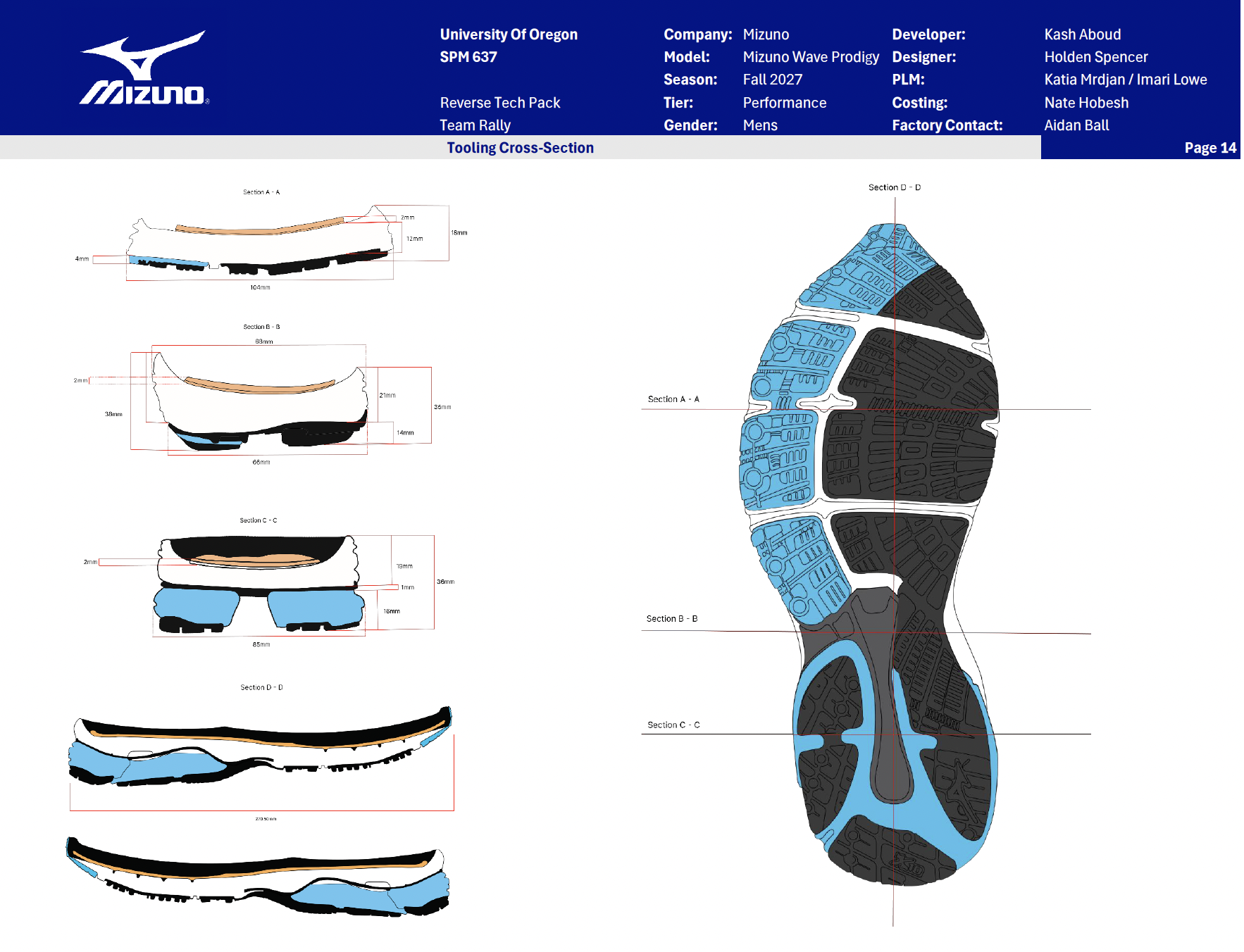

14. Tooling Cross-Section.png

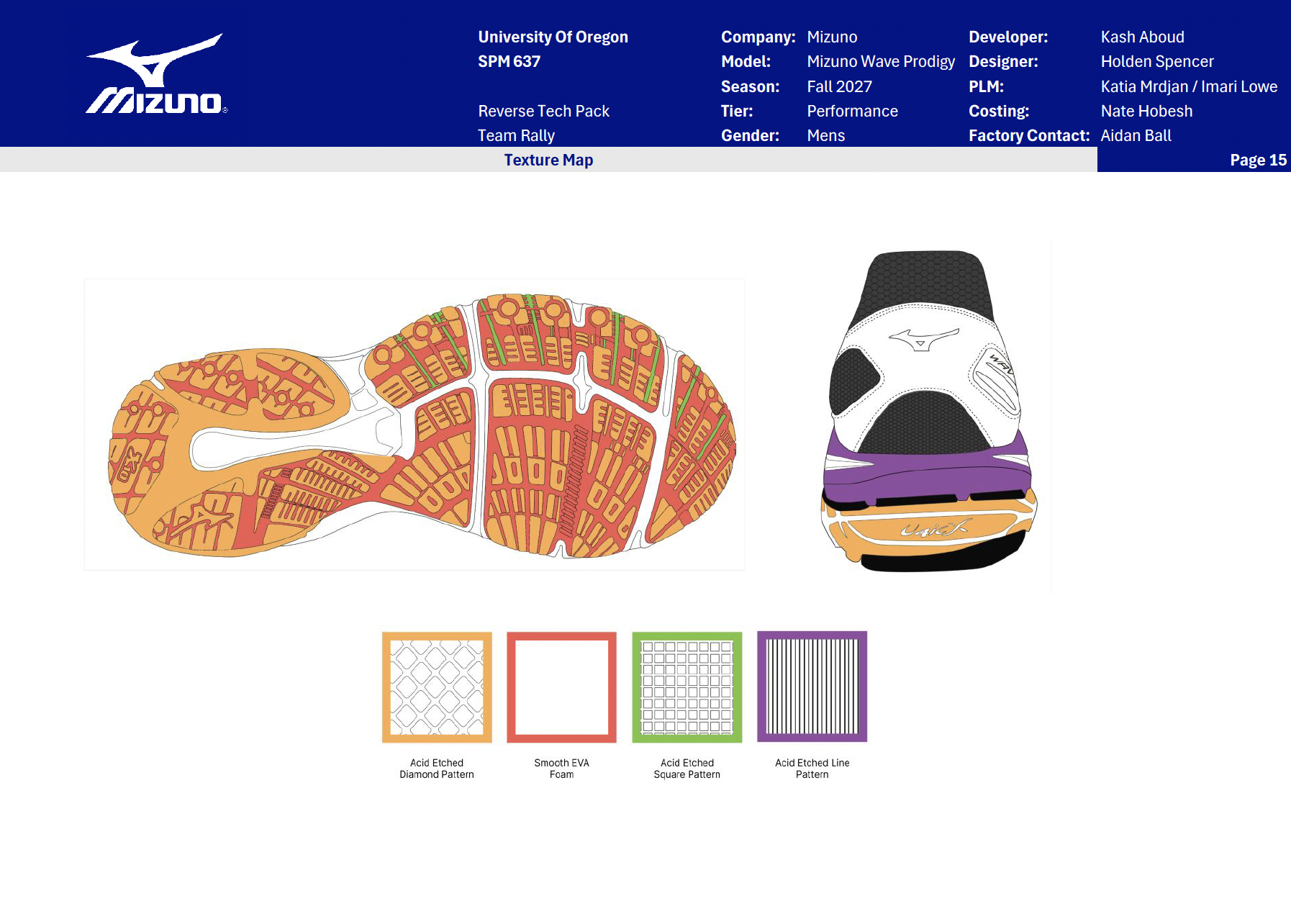

15. Texture Map.png

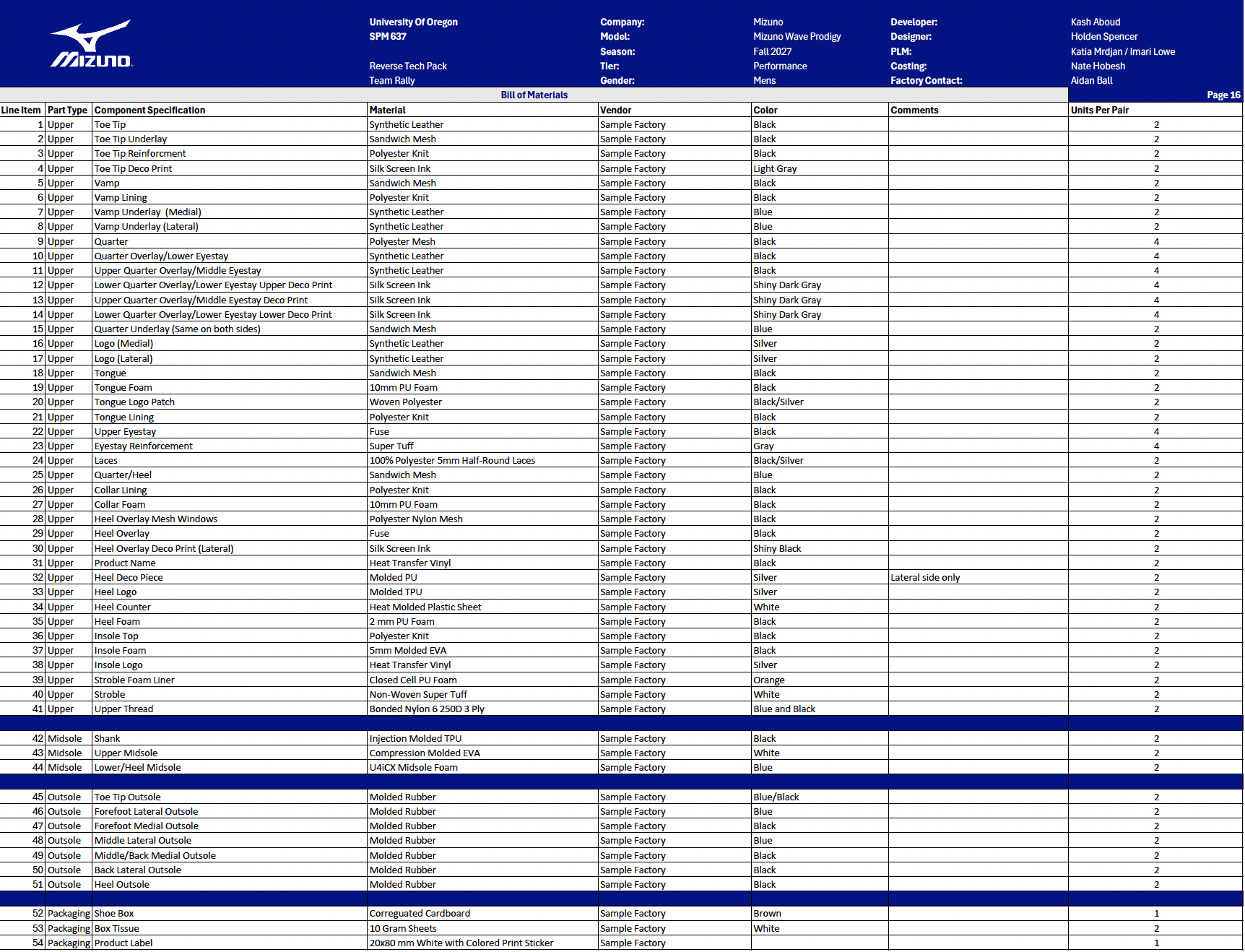

16. BOM.png

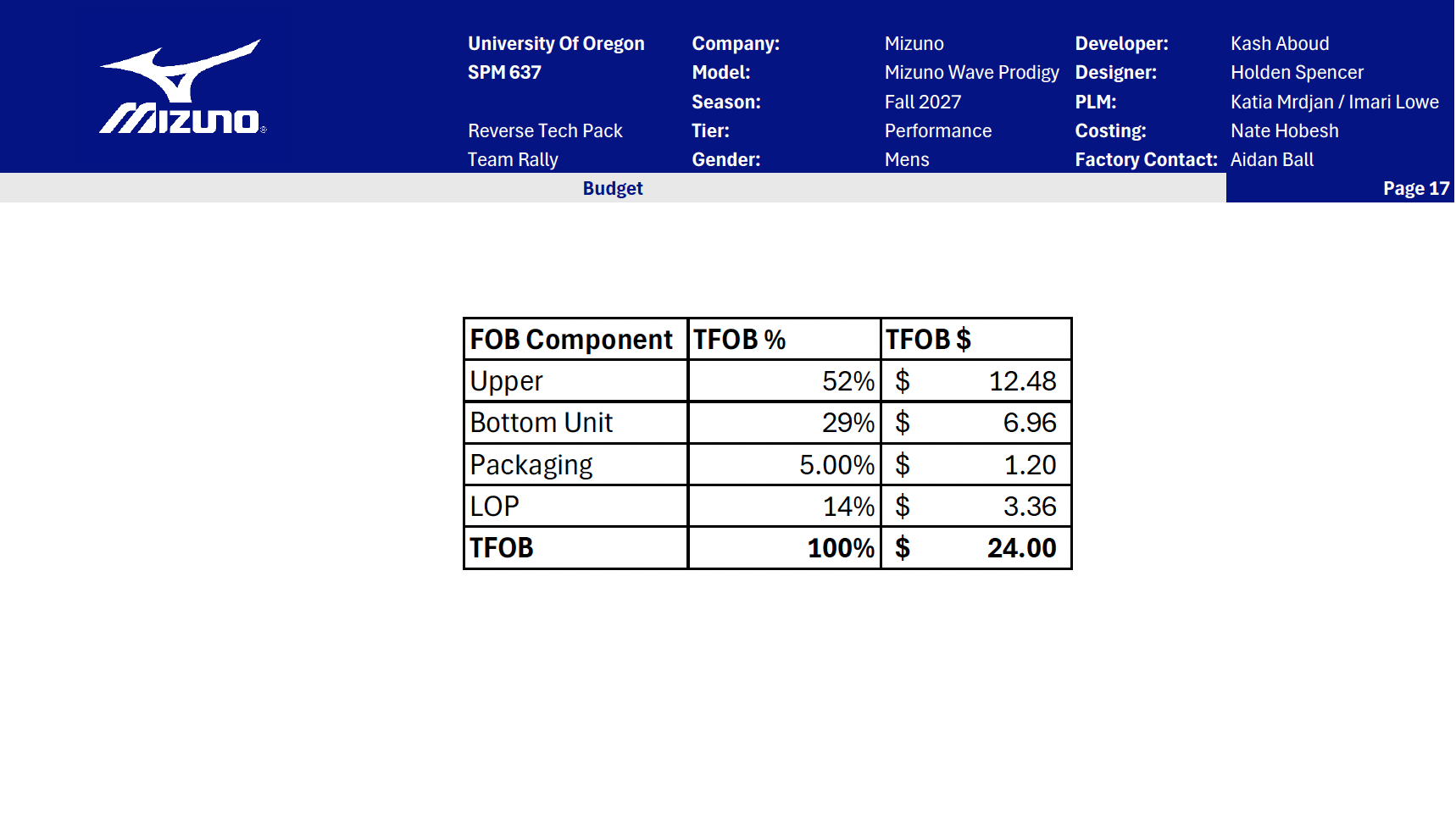

17. Budget.png

Screenshot 2026-04-21 at 4.54.34 PM.png

19. Wear Test Plan.png

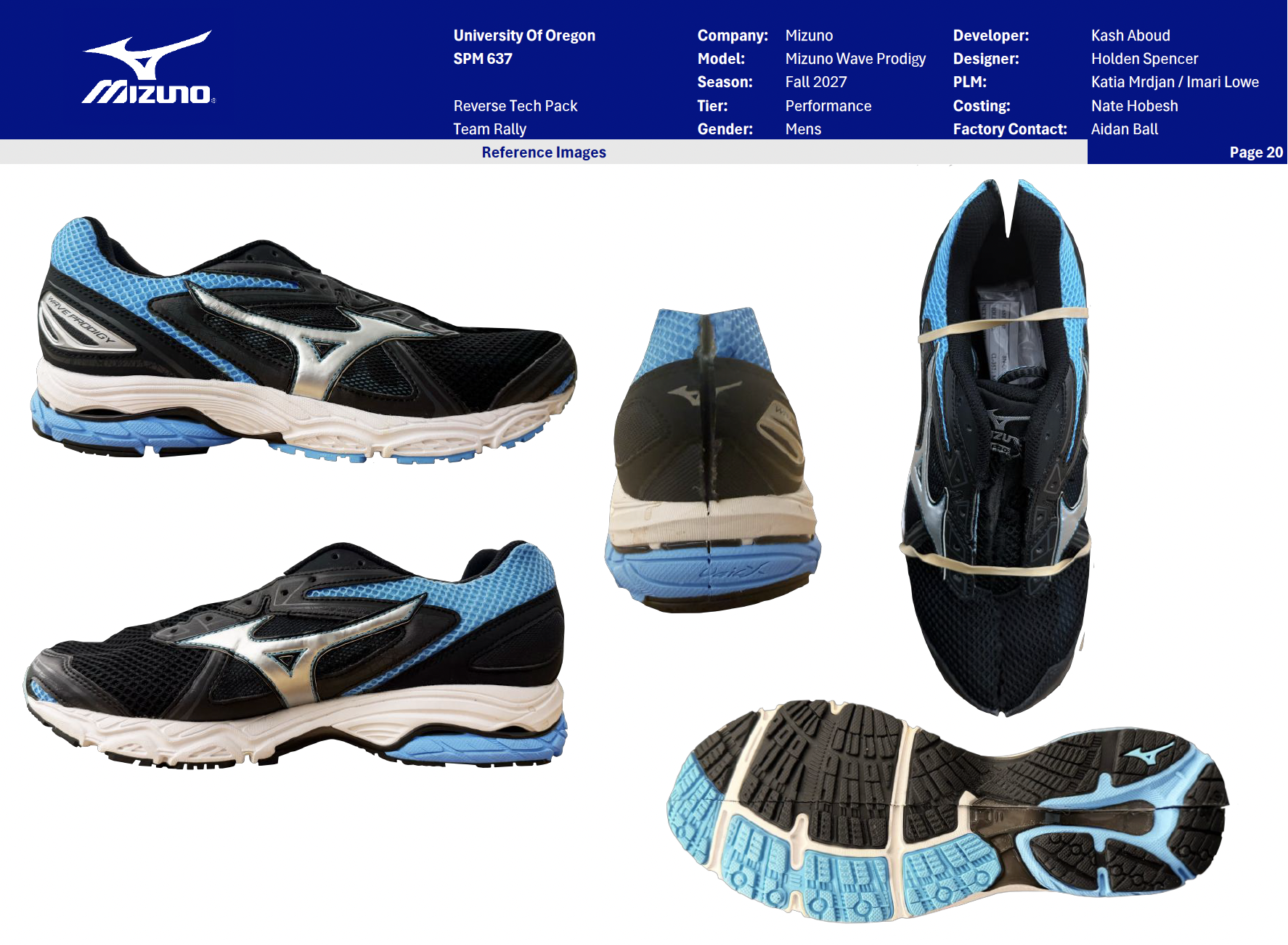

20. Reference Images.png
